Integration with Helmfile Vals¶

Overview¶

Classic secrets management via Git, SOPS and Age¶

RMK utilizes SOPS and Age for secrets management. This provides a consistent and auditable mechanism for handling secrets.

RMK also promotes batch secrets management, an approach for generating and maintaining secrets in batch mode.

Key characteristics of the Git-based approach:

Secrets are generated and encrypted using Golang templates and Sprig functions.
Encrypted files are stored and versioned in Git.
Encryption keys and secret rotation are managed by repository administrators or release managers.
Operates per project, scope, and environment level.

This approach for secrets management remains the standard and manual method in RMK.

Alternative secrets management via Helmfile Vals and third-party backends¶

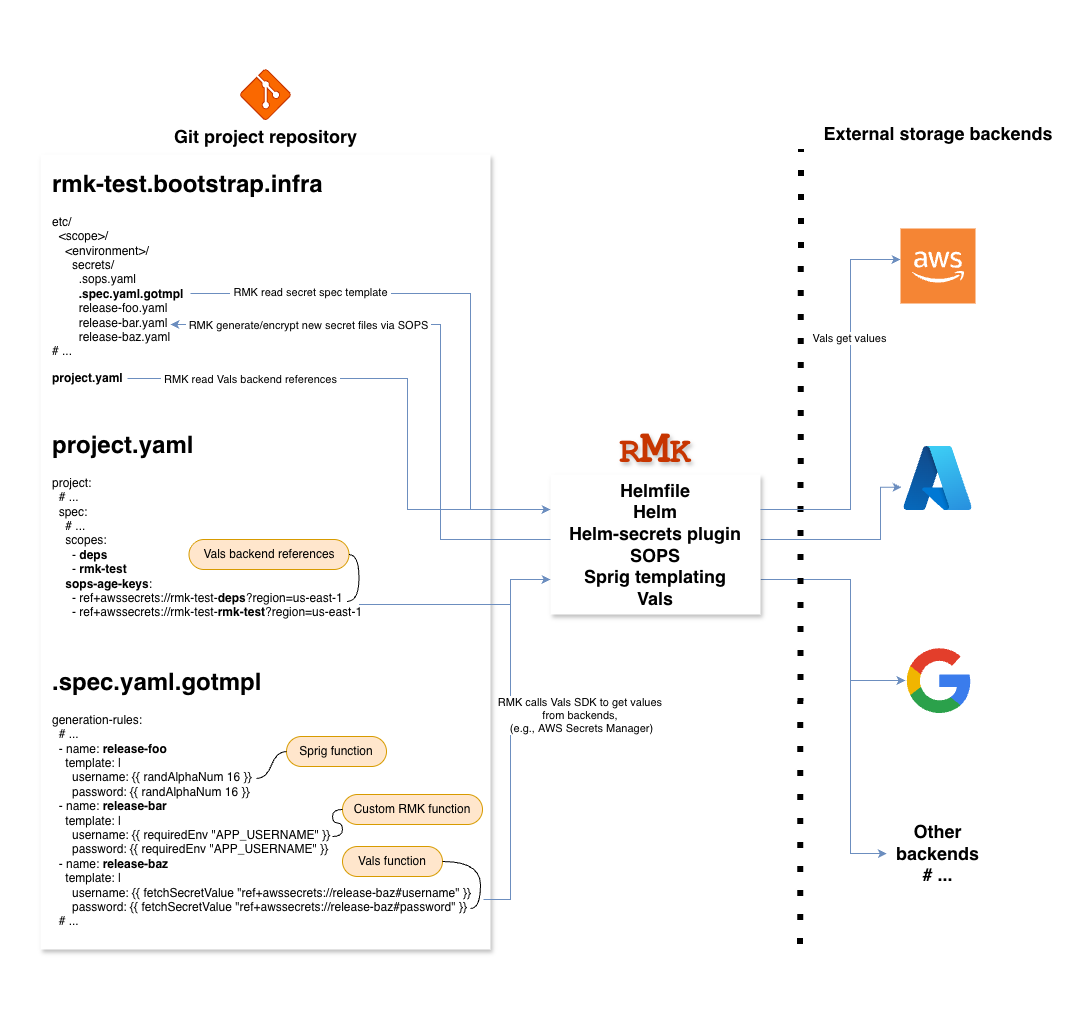

Introduction¶

Helmfile is used by RMK as its declarative release management layer for Helm-based deployments.
It includes built-in integration with Vals, allowing configuration parameters and secrets to be dynamically resolved from third-party backends during render time.

Popular Vals backends include:

See Supported Backends for the full list.

This approach provides RMK with additional flexibility and extends its secrets management capabilities — particularly useful when customers or release managers choose to leverage existing third-party secrets management systems.

Basic usage with full Vals delegation¶

During Helmfile rendering via RMK, Vals recursively scans all YAML structures (maps, lists, scalar values) for strings that start with ref+. Each such value is resolved via the corresponding backend provider (e.g., AWS Secrets Manager, Vault, SOPS).
If a ref+ reference is found inside a larger string, Vals does not process it — only standalone values are supported.

Example:

releases:
  - name: my-app
    namespace: default
    chart: ./chart
    values:
      - values.yaml
      - secrets:
          dbUser: ref+awssecrets://my-app#username
          dbPassword: ref+awssecrets://my-app#password
          # This line will NOT be resolved by Vals
          dbUrl: "postgres://user:ref+awssecrets://my-app#password@db"

In this example:

Helmfile automatically invokes Vals before rendering.
Vals recursively replaces all standalone ref+... strings with resolved values.
Inline references (like in dbUrl) remain untouched and must be constructed inside Helm templates instead.
RMK orchestrates the Helmfile execution without intercepting or modifying the secret resolution process.

This mode provides full transparency and minimal coupling. RMK does not process or transform secrets itself, it instead delegates secret resolution entirely to Vals, relying on Vals backends for secret retrieval, access control, and rotation.

Batch secrets management with Vals integration¶

RMK extends its classic batch secrets management mechanism with the ability to fetch and resolve secrets from third-party backends through Vals during template generation.
This allows users to automatically populate secret templates from systems such as AWS Secrets Manager, Google Secret Manager, or Azure Key Vault, and then store the generated values locally in encrypted form via SOPS, following the standard Git-based approach.

Secrets are retrieved in batch using the fetchSecretValue template function (equivalent to Helmfile’s implementation).
After resolution, the resulting files are to be encrypted with SOPS and safely committed to Git — giving release managers full control and auditability while still leveraging Vals backends for secret retrieval.

This approach is particularly useful when teams:

prefer to maintain secrets in Git for visibility and versioning,

want to avoid manual entry by pulling values automatically from third-party systems,

may still keep ref+ values in templates for dynamic runtime resolution.

Example fetchSecretValue function usage¶

generation-rules:
  - name: my-app
    template: |
      # Secrets fetched during generation via Vals
      username: {{ fetchSecretValue "ref+awssecrets://my-app#username?region=us-east-1" }}
      password: {{ fetchSecretValue "ref+awssecrets://my-app#password?region=us-east-1" }}

      # Ref-style dynamic value — still delegated to Vals and resolved by it at Helmfile render time or release sync
      apiToken: ref+awssecrets://my-app#token?region=us-east-1

When fetchSecretValue is used:

RMK invokes Vals to resolve each referenced secret during template generation.
Vals connects to the appropriate backend (e.g., AWS, GCP, Azure) using the credentials available in the environment.
Each ref+<vals_backend>://... reference points to a specific secret path and key within that backend.
Retrieved values are injected into the generated template prior to encryption.

After the template is rendered:

RMK encrypts the generated secret files using SOPS, maintaining the Git-based workflow and audit history.
Any remaining ref+ entries stay untouched and are dynamically resolved by Vals at render time during Helmfile execution.

This end-to-end flow ensures that secrets can be securely fetched, optionally stored in Git in encrypted form, and still benefit from runtime resolution for any remaining dynamic references.

Example secret structure in AWS Secrets Manager¶

Secret name: production/my-app/app

{
  "username": "app-user",
  "password": "app-pass"
}

Secret name: production/my-app/api

{
  "credentials": {
    "token": "abcd-1234-xyz"
  }
}

Referenced in template:

username: '{{ fetchSecretValue "ref+awssecrets://my-app#username?region=us-east-1" }}'
password: '{{ fetchSecretValue "ref+awssecrets://my-app#password?region=us-east-1" }}'
apiToken: '{{ fetchSecretValue "ref+awssecrets://my-app#token?region=us-east-1" }}'

Required permissions¶

AWS SSM Parameter Store

ssm:GetParameter
ssm:GetParameters
ssm:GetParametersByPath
kms:Decrypt (for SecureString parameters)

AWS Secrets Manager

secretsmanager:GetSecretValue
secretsmanager:DescribeSecret
kms:Decrypt (if custom CMK is used)

Example IAM policy:

{
  "Effect": "Allow",
  "Action": [
    "ssm:GetParameter",
    "ssm:GetParameters",
    "ssm:GetParametersByPath",
    "secretsmanager:GetSecretValue",
    "secretsmanager:DescribeSecret"
  ],
  "Resource": [
    "arn:aws:ssm:REGION:ACCOUNT_ID:parameter/PATH/*",
    "arn:aws:secretsmanager:REGION:ACCOUNT_ID:secret:SECRET_PREFIX-*"
  ]
}

For encrypted secrets (KMS):

{
  "Effect": "Allow",
  "Action": [
    "kms:Decrypt"
  ],
  "Resource": "arn:aws:kms:REGION:ACCOUNT_ID:key/KEY_ID_OR_UUID"
}

Example secret structure in Google Secret Manager¶

Secret name: my-secret

Secret value: my-db-password-123

Referenced in template:

dbPassword: '{{ fetchSecretValue "ref+gcpsecrets://my-secret" }}'

Required permissions¶

Secret Manager

Role: roles/secretmanager.secretAccessor

gcloud projects add-iam-policy-binding PROJECT_ID \
  --member="serviceAccount:SA_NAME@PROJECT_ID.iam.gserviceaccount.com" \
  --role="roles/secretmanager.secretAccessor"

Cloud KMS (optional, if secrets encrypted with KMS)

Role: roles/cloudkms.cryptoKeyDecrypter

gcloud kms keys add-iam-policy-binding KEY_NAME \
  --keyring=KEYRING_NAME --location=LOCATION \
  --member="serviceAccount:SA_NAME@PROJECT_ID.iam.gserviceaccount.com" \
  --role="roles/cloudkms.cryptoKeyDecrypter"

Example secret structure in Azure Key Vault¶

Secret name: my-app-api-key

Secret value: abc123xyz987

Referenced in template:

apiKey: '{{ fetchSecretValue "ref+azurekeyvault://my-keyvault/my-app-api-key" }}'

Required permissions¶

Minimum role: Key Vault Secrets User

AZURE_VAULT_NAME=my-vault
AZURE_PRINCIPAL_ID=<object_ID_of_service_principal_or_managed_identity>
AZURE_SCOPE=$(az keyvault show -n "${AZURE_VAULT_NAME}" --query id -o tsv)

az role assignment create \
  --assignee-object-id "${AZURE_PRINCIPAL_ID}" \
  --assignee-principal-type ServicePrincipal \
  --role "Key Vault Secrets User" \
  --scope "${AZURE_SCOPE}"

Automatic credential injection during template generation¶

RMK automatically passes active provider credentials into the context of template generation,
allowing seamless secret resolution from third-party backends (e.g., AWS Secrets Manager, Azure Key Vault, GCP Secret Manager) without manual credential setup.

For details about all supported cluster providers and their configuration attributes, see
Configuration Management.

For example, when a cloud provider such as AWS, Azure, or GCP is initialized using:

rmk config init --cluster-provider aws

RMK stores the credentials for that provider and automatically injects them during
rmk secret manager generate, enabling Vals to access the respective backend transparently. As a result, secret references such as ref+awssecrets://app#password are resolved automatically at generation time — no environment configuration required.

Cross-provider access in a single secrets template¶

If you need to access secrets from an additional provider that differs from the active one,
export the required environment variables to pass the needed credentials to the template generator.

For example, when the currect cluster provider is AWS:

rmk config init --cluster-provider aws

But Azure and GCP are refenced additionaly from the same template, e.g.:

generation-rules:
  - name: multi-provider-example
    template: |
      # AWS-provided secrets (default provider context)
      database:
        username: {{ fetchSecretValue "ref+awssecrets://my-app#username?region=us-east-1" }}
        password: {{ fetchSecretValue "ref+awssecrets://my-app#password?region=us-east-1" }}

      # GCP-provided secret (requires GOOGLE_APPLICATION_CREDENTIALS)
      gcp:
        apiKey: {{ fetchSecretValue "ref+gcpsecrets://my-api-key" }}

      # Azure-provided secret (requires AZURE_CLIENT_ID, AZURE_CLIENT_SECRET, AZURE_TENANT_ID)
      azure:
        storageKey: {{ fetchSecretValue "ref+azurekeyvault://my-vault/storage-key" }}

      # Optional dynamic Vals references still supported
      metrics:
        token: ref+vault://secret/data/observability#data.token

You should explicitly export the variables, e.g.:

# AWS variables will be exported automatically and always take priority over any exports
# Extra variables are required to be exported manually
export GOOGLE_APPLICATION_CREDENTIALS=/path/to/gcp-key.json
export AZURE_CLIENT_ID=<azure_client_id>
export AZURE_CLIENT_SECRET=<azure_client_secret>
export AZURE_TENANT_ID=<azure_tenant_id>

rmk secret manager generate --scope rmk-test --environment production

While the functionality is fully supported, it is considered advanced and should be used only when explicitly required.

SOPS Age key fetching via Vals backend references in project.yaml¶

Overview¶

RMK supports fetching SOPS Age keys via Vals backend references defined in project.yaml under project.spec.sops-age-keys. Each entry corresponds to a project scope - the number of scopes should equal the number of references.

This functionality is available for k3d and onprem cluster providers only, as they do not use any third-party secret storage out of the box.

Project generation example¶

rmk project generate \
  --sops-age-key="ref+awssecrets://rmk-test-deps?region=us-east-1" \
  --sops-age-key="ref+awssecrets://rmk-test-rmk-test?region=us-east-1" \
  --environment="develop.root-domain=*.edenlab.dev" \
  --owner=gh-user1 \
  --scope=deps \
  --scope=rmk-test

This command generates a RMK project structure with two scopes (deps, rmk-test) and automatically links them to the corresponding SOPS Age keys stored in AWS Secrets Manager.

Example `project.yaml`¶

project:
  dependencies:
    - name: cluster-deps.bootstrap.infra
      version: v0.16.0
      url: git::https://github.com/edenlabllc/{{.Name}}.git?ref={{.Version}}
  spec:
    environments:
      develop:
        root-domain: '*.edenlab.dev'
    owners:
      - gh-user1
    # Logical scopes representing individual project components
    # Each scope will have its own secrets, releases, and structure
    scopes:
      - deps
      - rmk-test
    # SOPS Age keys defined as Vals backend references
    # Each reference corresponds to one project scope
    # In this example: keys are stored in AWS Secrets Manager (region: us-east-1)
    sops-age-keys:
      - ref+awssecrets://rmk-test-deps?region=us-east-1
      - ref+awssecrets://rmk-test-rmk-test?region=us-east-1

Configuration initialization¶

When there are any Vals backend references in project.yaml, export credentials for the Vals backend defined in the references (in this example — AWS) before initializing configuration, e.g. for AWS Secrets Manager:

export AWS_ACCESS_KEY_ID=<aws_access_key_id>
export AWS_SECRET_ACCESS_KEY=<aws_secret_access_key>
# Export AWS_REGION only if it is not specified in the Vals backend reference, e.g.:
#   ref+awssecrets://rmk-test-deps?region=us-east-1
export AWS_REGION=<aws_region>

Then initialize configuration for the desired provider:

# For k3d cluster provider (default)
rmk config init

# For onprem cluster provider
rmk config init --cluster-provider=onprem

RMK automatically resolves the secrets at initialization time to securely fetch existing Age keys from the third-party Vals backends.

Last update: October 31, 2025
